Tern

GSD S00 LR

£5,700.00
Tax included. Shipping calculated at checkout.
Please Call Before Ordering

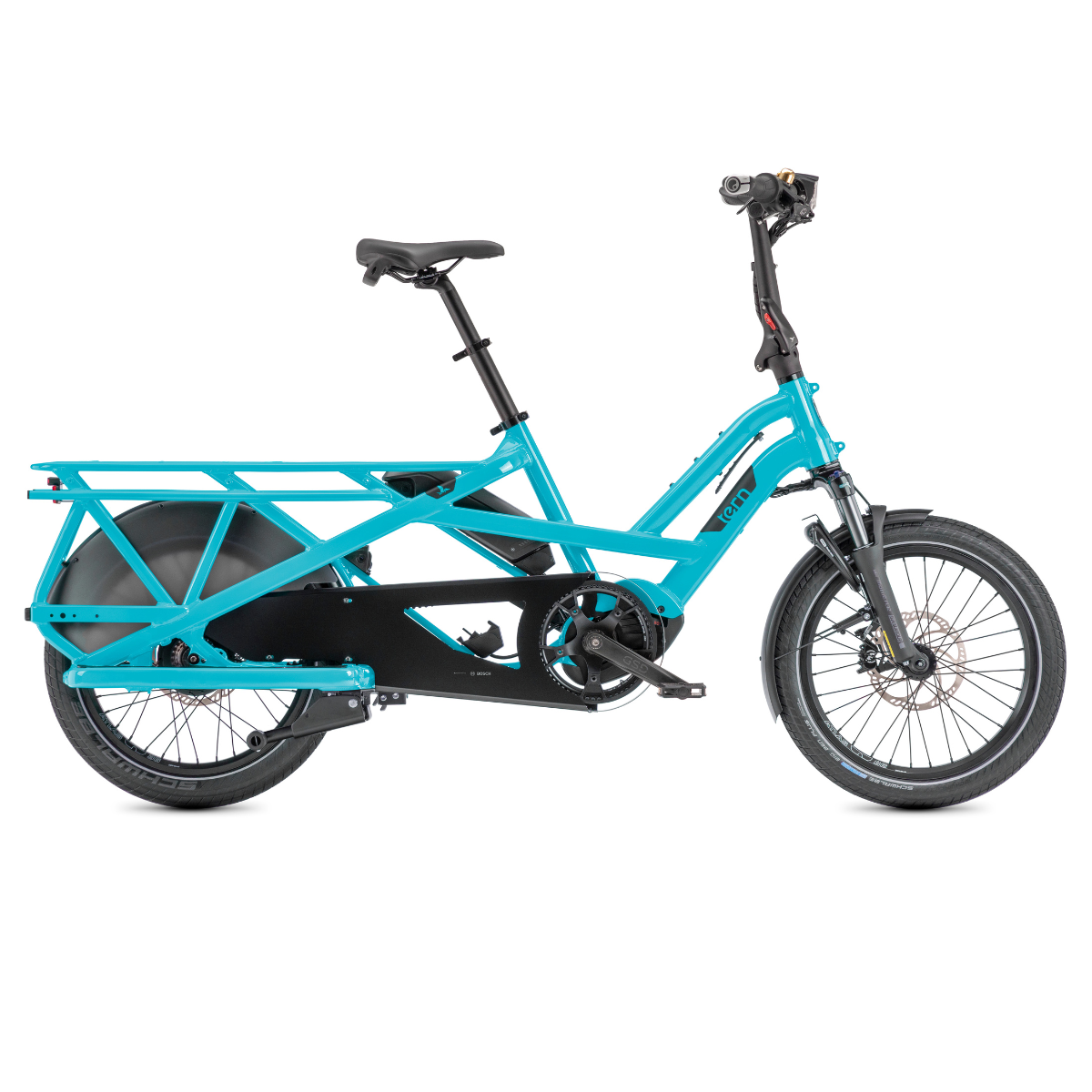

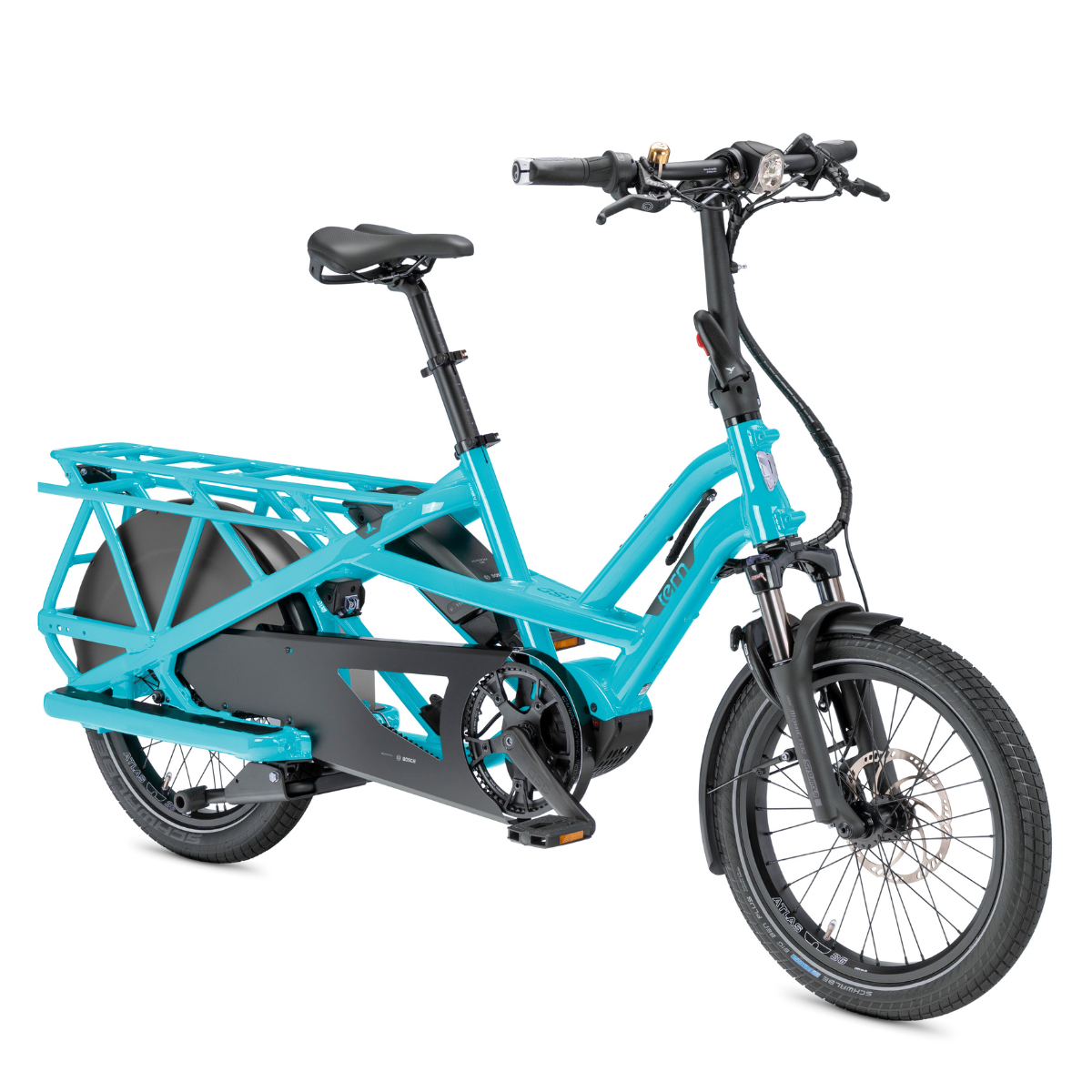

Colour: Beetle Blue
Size: One size

Pickup available at 815 Christchurch Road

Usually ready in 5+ days

Pickup available at 815 Christchurch Road
Usually ready in 5+ days
Call for availability
Shipping & Returns
  • We offer shipping up to 100 miles.
  • Please contact the store if you require assistance with delivery.
Colour: Beetle Blue
Size

Product Specification

Take a look at the specifications of the GSD S00 LR:

General Info
  • Speeds: Continuously Variable 380%
  • Weight: 34.98 kg (77.1 lb)
  • Gear Inches: 26" - 99" (2.08 - 7.91 m)
  • Folding Size: 176 × 40.5 × 83 cm (69.3 × 15.9 × 32.7 in)
  • Folding Time: 5 sec
  • Frame Sizes: One size
  • Distance: Seatpost to Handlebar: 49 - 59 cm (19.3 - 23.2 in)
  • Distance: Saddle to Pedal: 69 - 105 cm (27.2 - 41.3 in)
  • Suggested Rider Height: 150 - 195 cm (59.1 - 76.8 in)
  • Max Gross Vehicle Weight: 200 kg (440.9 lb)
  • Max Rider Weight: 120 kg (264.6 lb)
Frame & Forks
  • Frame: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg
  • Fork: Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg
Cockpit
  • Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
  • Stem: Tern Andros, adjustable, forged construction, patented technology
  • Headset: Tern Flux Pro Taper, 1.5", angular contact bearings, Physis integrated
  • Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
  • Grips/Bar Tape: Ergon
  • Saddle: Tern GSD by Velo, with rear handle
  • Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
  • Seatpost Clamp: Tern Collar, 6061-AL, 2pc
Transmission
  • Shifter(s): Enviolo, Twist
  • Crankset: Tern GSD custom, Gates CDX CNC machined beltring
  • Cassette/Freewheel: Gates CDX, precision CNC machined cog
  • Bottom Bracket: Motor integrated
  • Chain: Gates Carbon Drive CDX belt
  • Pedals: Urban with non-slip surface, sealed bearings
  • Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
  • Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
  • Battery: Bosch Dual Battery system, 500 Wh or 1000 Wh
  • Display: Bosch Purion, 4 mode selectable, walk assist
  • Range: 500 Wh: 50-101 km (31-63 mi); 1000 Wh: 102-206 km (63-128 mi)
  • Charger: 220V, 4A (EU); 100-240V, 4A (US)
Wheelset
  • Front Hub: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
  • Rear Hub: Enviolo SP, 380% continuously variable range, Boost
  • Spokes & Nipples: Stainless steel, 13G
  • Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
  • Tyres: F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex
  • Tyres: R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex
Brakes
  • Front Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
  • Rear Brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
  • Brake Levers: Magura MT5 e-stop, hydraulic, with brake sensor
Bells & Whistles
  • Bell: Pitch Plus, brass
  • Chainguard: Tern Custom, full chain cover
  • Kickstand: Atlas Lockstand, w/ remote unlock, patented technology
  • Luggage Socket: Combo Mount
  • Front Light: Tern Valo Direct, 190 lumens
  • Rear Light: RearStop Brake Light, Always on brake light
  • Fenders: Integrated Wheel Guard, AL6061, w/ Side Skirt
  • Rack(s): Frame integrated, heavy duty design; Max load weight: 100 kg (220 lb)
  • Accessory: ABUS, keyed-alike with Bosch battery
The Ultimate Cargo Explorer

The GSD is ready to replace your car!

Built To Last

Fun For All

Easy Transportation

The Ultimate Cargo Explorer

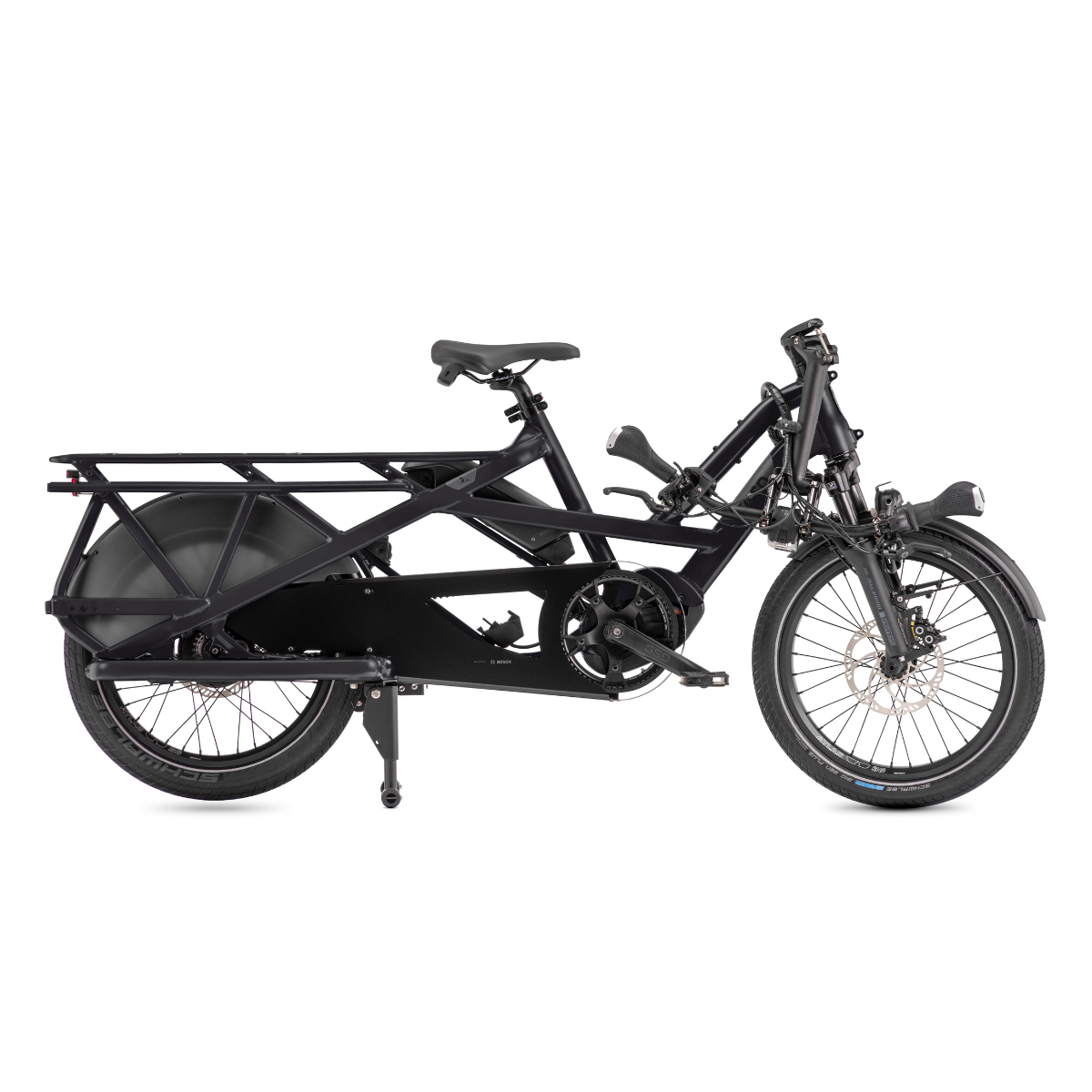

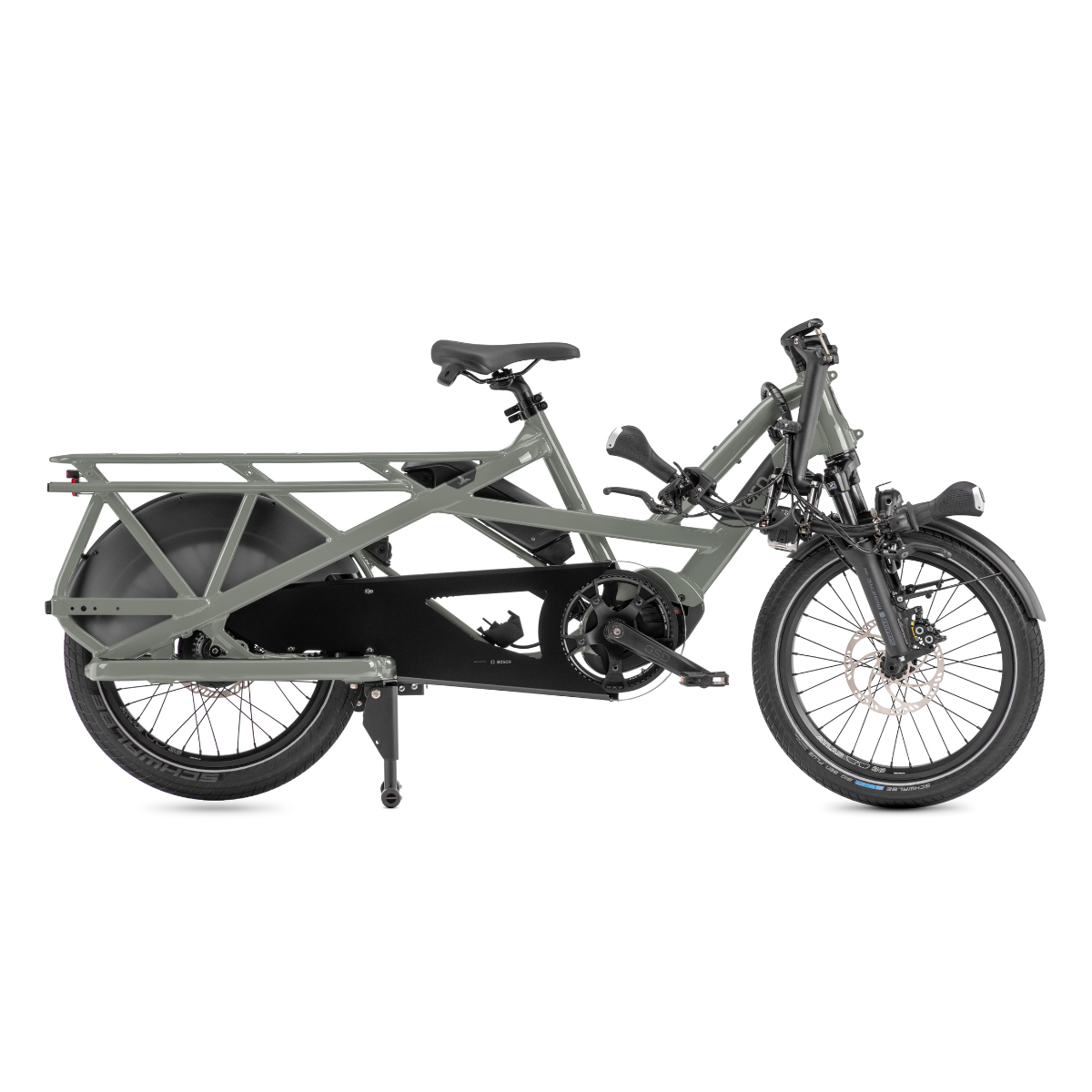

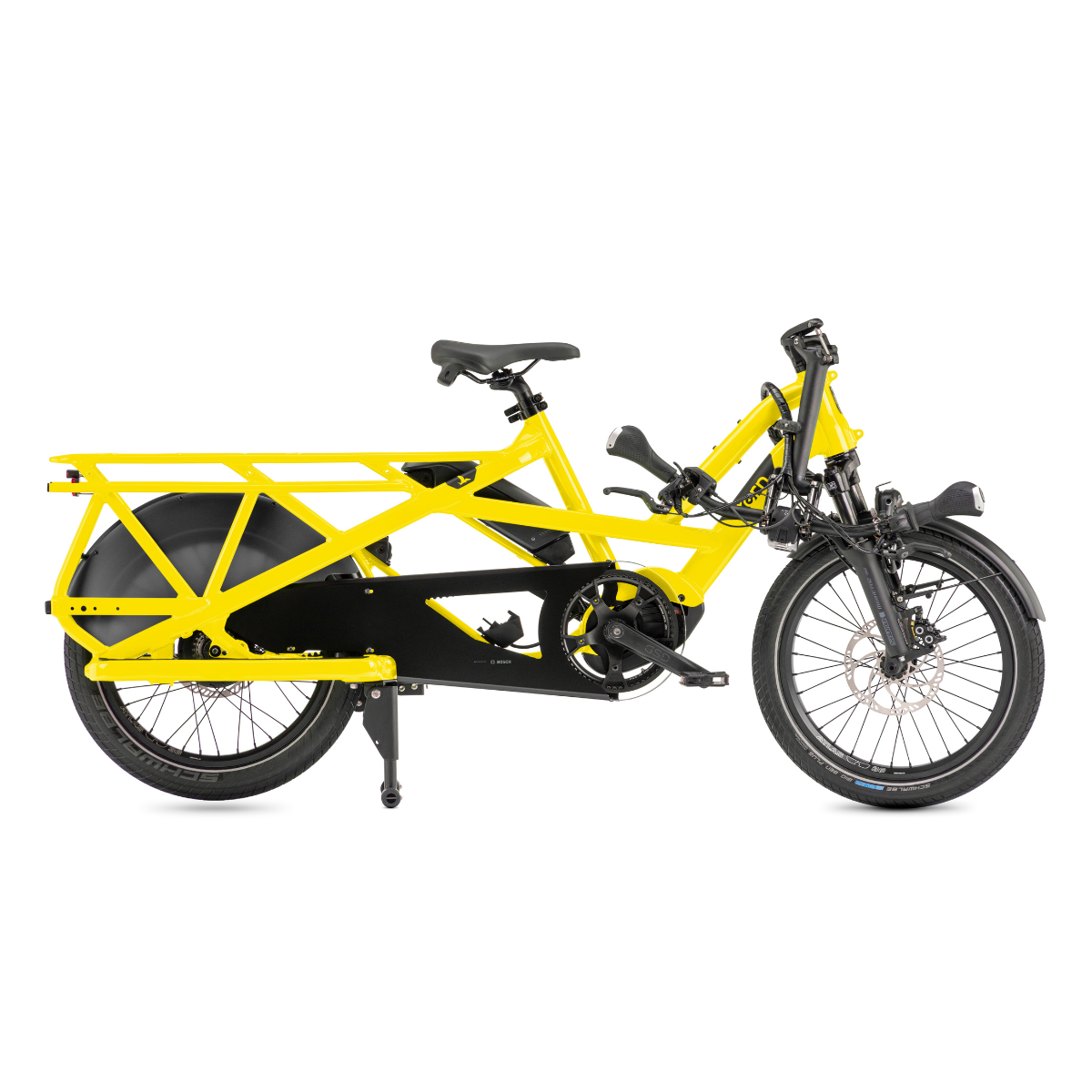

With a 200 kg (440 lb) Maximum Gross Vehicle Weight, the GSD is ready to replace your car. It’ll let you carry two kids plus groceries, or a whole lot of cargo—but it’s the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.

Gates CDX Belt Drive

Dual Battery Capacity

Magura MT5 Brakes

⓵ All Day Battery

Equipped with Bosch dual-battery technology, the GSD is wired from the get-go to accommodate two batteries—meaning you can get a second battery when you’re really sure you need it, without having to worry about rewiring your bike. Just plug it in and you’re good to go.

⓶ Gates CDX Belt Drive

Smooth, silent, clean, durable, and maintenance-free—so you can spend more time riding and less time cleaning and lubing your bike chain. Equipped on the GSD S00 and R14.

⓷ Ecosystem of Accessories

Make the most of the frame-integrated rear rack’s enormous strength and the robust Combo Mount for front cargo accessories. Whether you need to carry passengers or cargo, there’s something for every situation.
