Renovatio Bikes

Eclipse P20

£1,650.00
Tax included. Shipping calculated at checkout.
Please Call Before Ordering
Colour: Matte Black
Size: One Size

Pickup available at 815 Christchurch Road

Usually ready in 5+ days

Pickup available at 815 Christchurch Road
Usually ready in 5+ days
Call for availability
Shipping & Returns
  • We offer shipping up to 100 miles.
  • Please contact the store if you require assistance with delivery.
Colour: Matte Black
Size

Product Specification

Take a look at the specifications of the Eclipse P20:

General Info
  • Speeds: 2 x 10
  • Weight: 12.22 kg (26.9 lb)
  • Gear Inches: 26" - 112" (2.09 - 8.92 m)

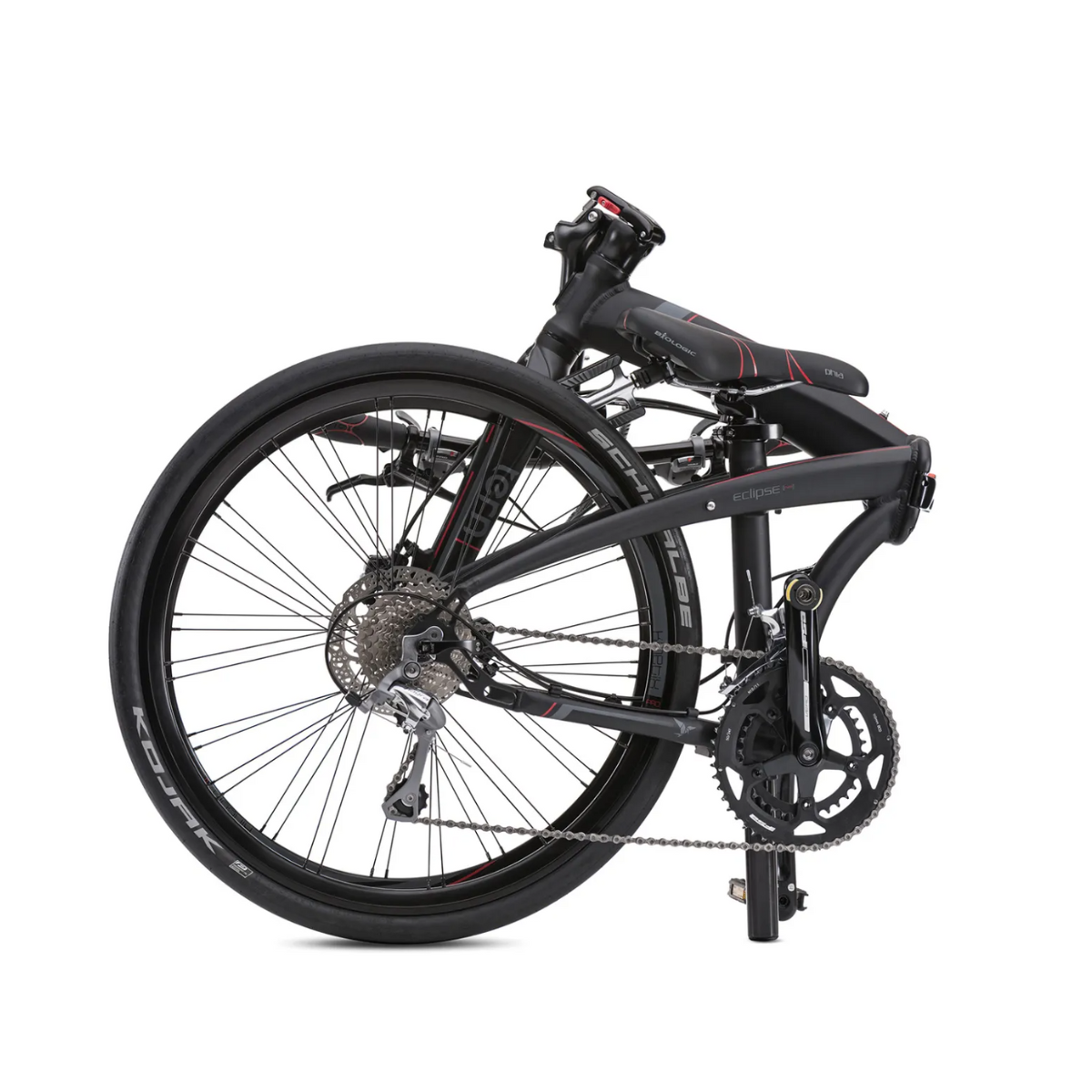

  • Folding Size: 38 × 91 × 80 cm (15 × 35.8 × 31.5 in)
  • Folding Time: 10 sec
  • Frame Sizes: One size
  • Distance: Seatpost to Handlebar: 63 - 70 cm (24.8 - 27.6 in)
  • Distance: Saddle to Pedal: 77 - 104 cm (30.3 - 40.9 in)
  • Suggested Rider Height: 148 - 195 cm (58.3 - 76.8 in)
  • Max Gross Vehicle Weight: 120 kg (264.6 lb)
  • Max Rider Weight: 105 kg (231.5 lb)
Frame & Forks
  • Frame: Tern Eclipse, hydroformed aluminium with smooth TIG welding, OCL+ joint, 3 patented technologies
  • Fork: Tarsus, 6061-AL, hydroformed
Cockpit
  • Handlepost: Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm
  • Stem: Syntace VRO, adjustable
  • Headset: Flux, cartridge bearings, Physis integrated
  • Handlebar: Kinetix Comp, 6061-AL, VRO butted
  • Grips/Bar Tape: BioLogic Arx
  • Saddle: Tern Porter+, patented GripPad design, PrimeGel padding
  • Seatpost: SuperOversize, 6061-AL, forged clamp
  • Seatpost Clamp: Syntace OverLock
Transmission
  • Shifter(s): Shimano Tiagra trigger, 2 x 10 spd
  • Front Derailleur: Shimano Tiagra
  • Rear Derailleur: Shimano Tiagra
  • Crankset: FSA Vero, 50/34T
  • Cassette/Freewheel: Shimano Deore, 11-32T, 10 spd
  • Bottom Bracket: Cartridge, sealed bearings
  • Chain: KMC X10
  • Pedals: LiteForm QR, alloy body, QR right/standard left
  • Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Wheelset
  • Front Wheel: Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
  • Rear Wheel: Kinetix Pro Disc, Paired Spoke technology, Shimano Centerlock, 20H
  • Spokes & Nipples: Double-butted 18/10 stainless, Sapim Polyax nipples
  • Tyres: Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi
Brakes
  • Front Brake: Tektro Auriga, hydraulic disc
  • Rear Brake: Tektro Auriga, hydraulic disc
  • Brake Levers: Tektro Auriga, hydraulic disc
  • Brake Cable & Housing: Tektro Auriga, hydraulic
Bells & Whistles
  • Bell: Pitch, brass
  • Kickstand: Premium centre mount
  • Clip System: Magnetix 2.0
  • Luggage Socket: Yes
  • Rear Light: BioLogic TailLight
  • Accessory: Pedal Holder
High Performance Folding Bike

Speed, precision, and comfort
in a sleek, compact design!

Super Commuter

Comfort & Control

Engineered for Speed

High Performance Folding Bike

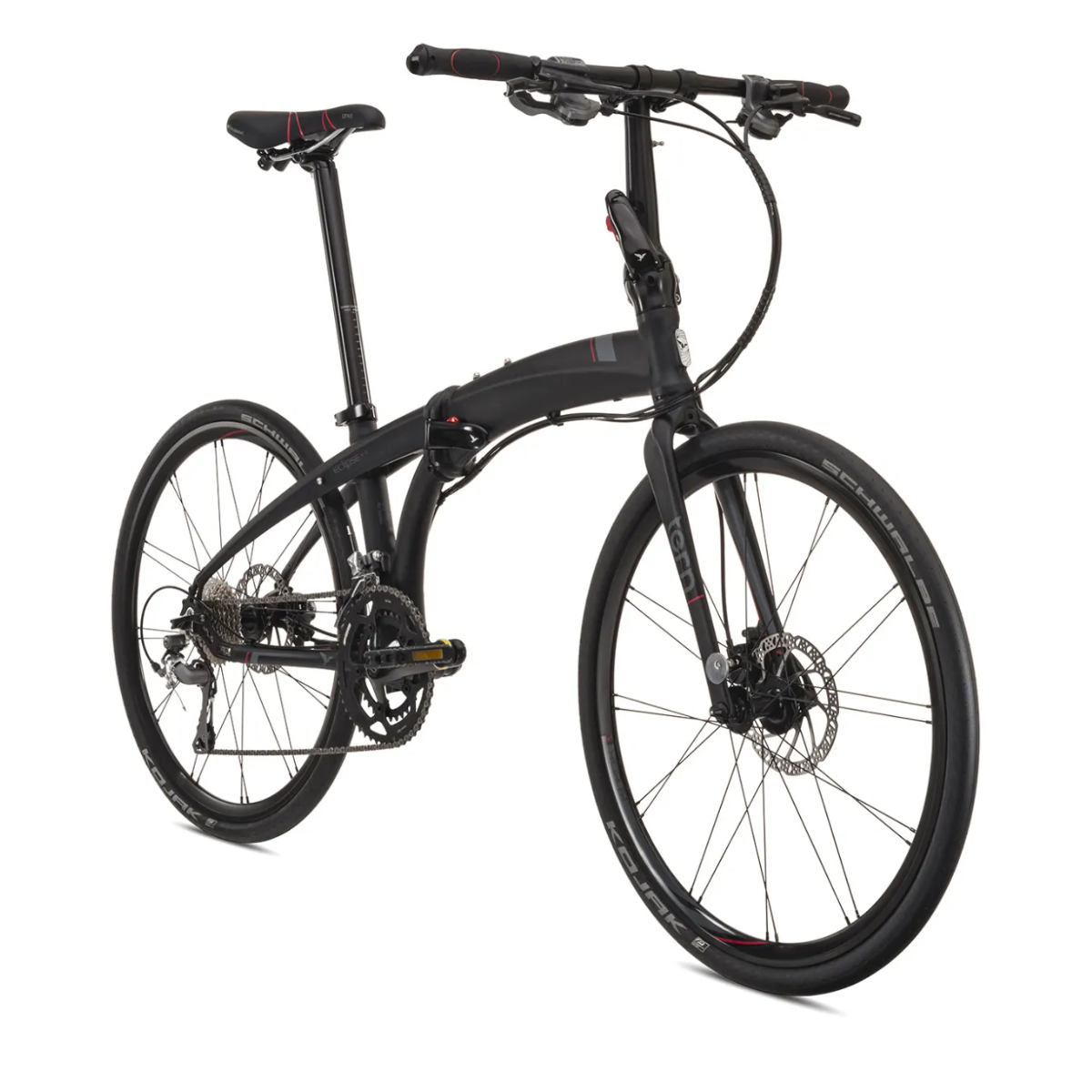

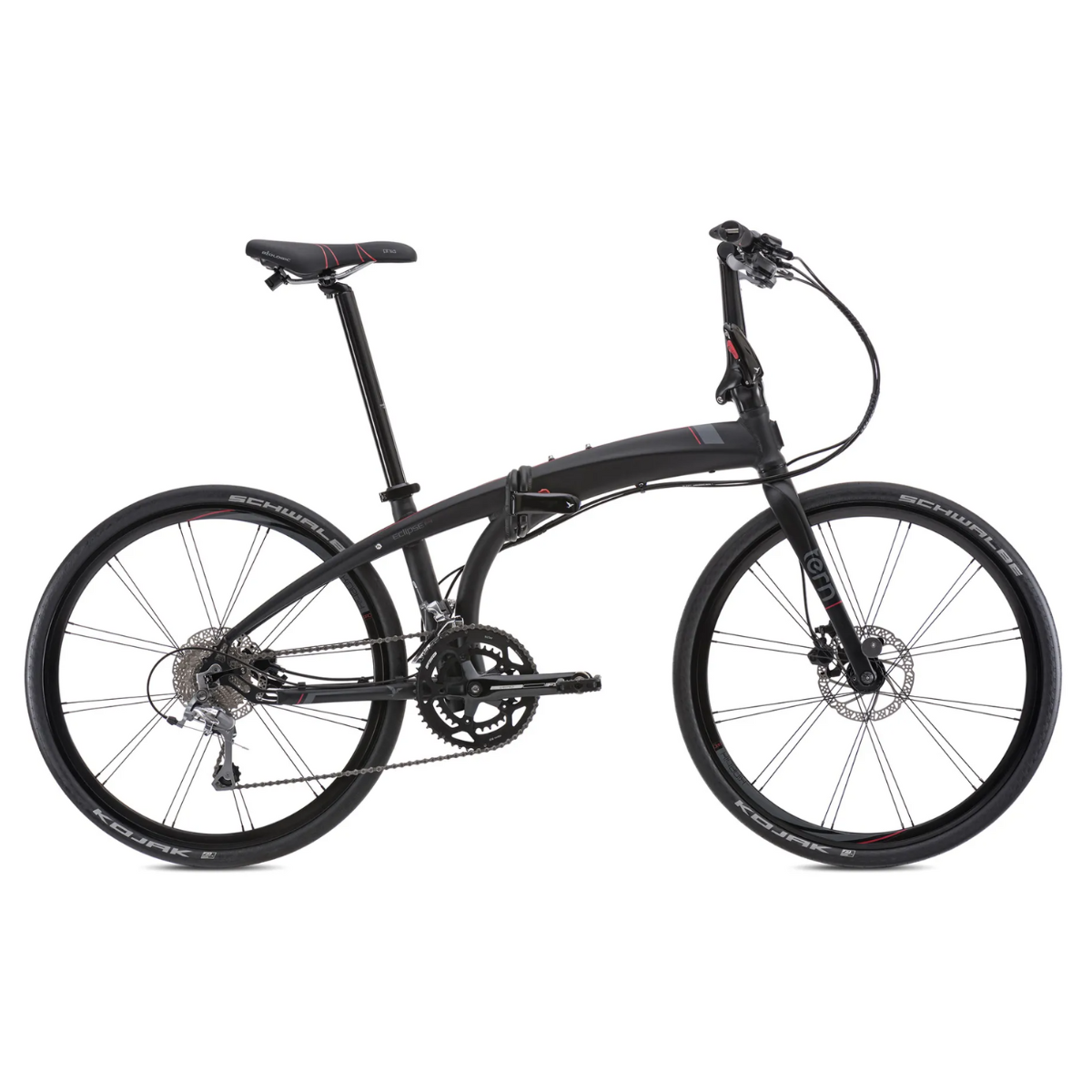

The Eclipse P20 combines road-bike performance with folding convenience, built for riders who refuse to compromise on speed or style. Its sleek aluminium frame, 26” Kinetix Pro wheels, and Shimano Tiagra 20-speed drivetrain deliver a smooth, powerful ride—whether you’re sprinting through the city or heading out for the weekend. Fast, refined, and effortlessly compact, the Eclipse P20 is engineered to perform anywhere the road takes you.

2 x 10 Shimano Tiagra

Tektro Auriga hydraulic disc brakes

Tern Folding Technology

⓵ OCL+ Frame Joint

A heavy-duty update to our iconic OCL frame hinge, the OCL+ is built to exceed ISO 4210 and EN 15194 testing requirements. Leveraging the hinge design of the long-tail Tern Cargo Node, the OCL+ features a single-shaft design, advanced welding techniques, and robust gussets, so it stays stiff and strong during even the fastest commutes.

⓶ Tarsus Fork

Utilizing a single hydroformed tube mated to a precision-machined steerer, the Tarsus delivers superior strength in a shape that matches the sophisticated lines of the Verge and Eclipse frames.

⓷ Kinetix Pro Disc Wheels

Paired-spoke design allows us to build a strong wheel with fewer spokes—resulting in a lightweight, aerodynamic wheel for fast riding.
