Product Specification
Take a look at the specifications of the Vektron S10:
General Info
• Speeds: 1 x 10
• Weight: 22.1 kg (48.7 lb)
• Gear Inches: 30" - 97" (2.36 - 7.72 m)

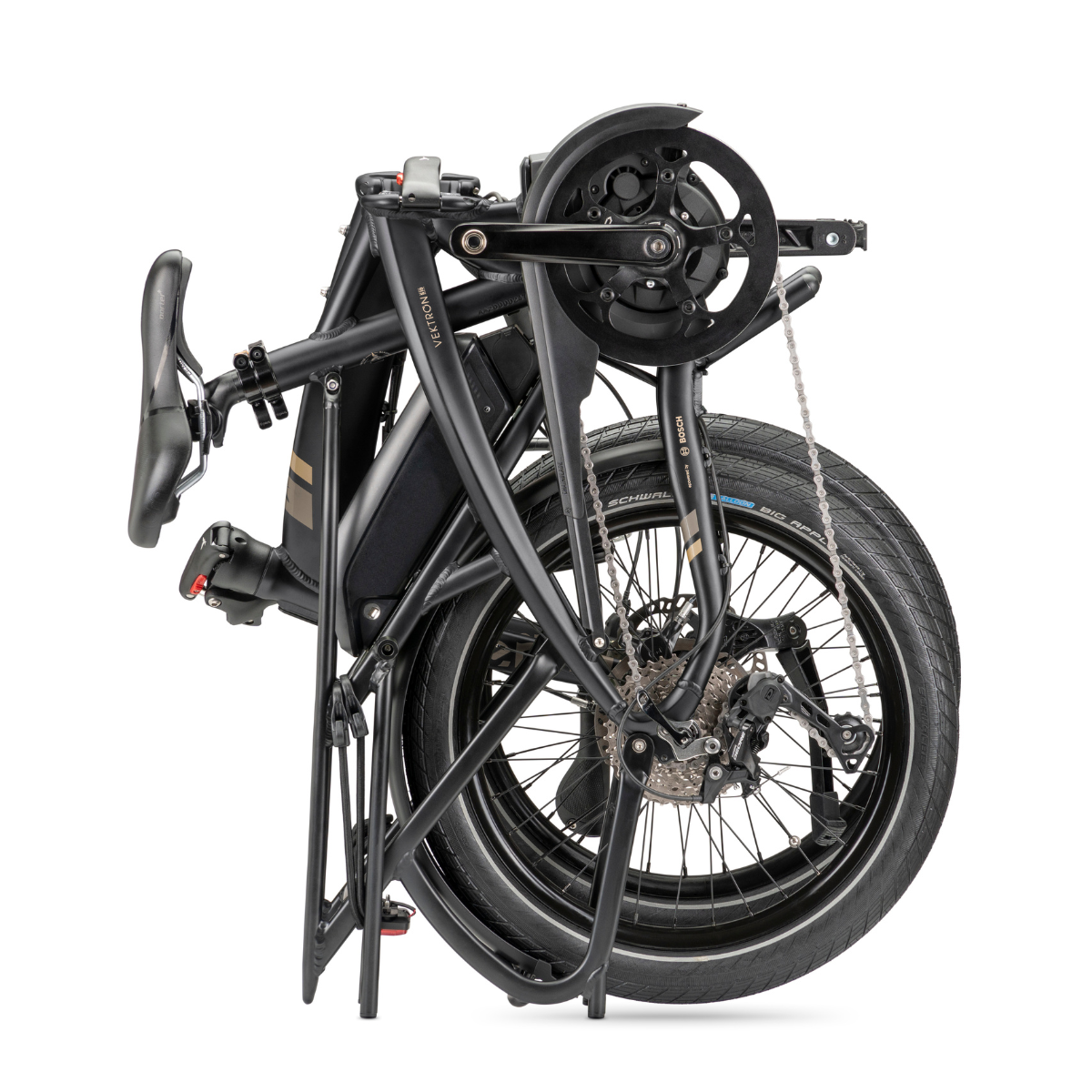

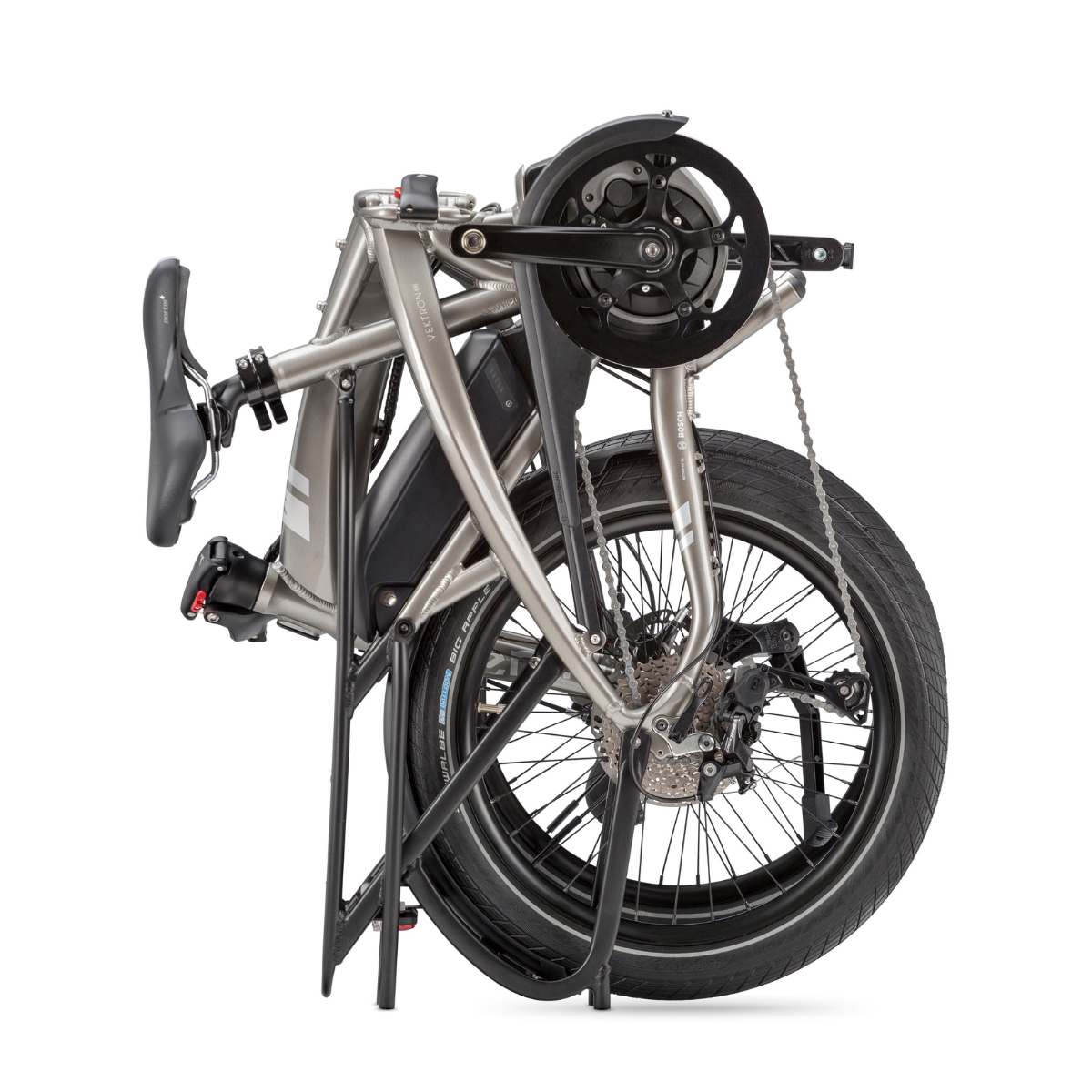

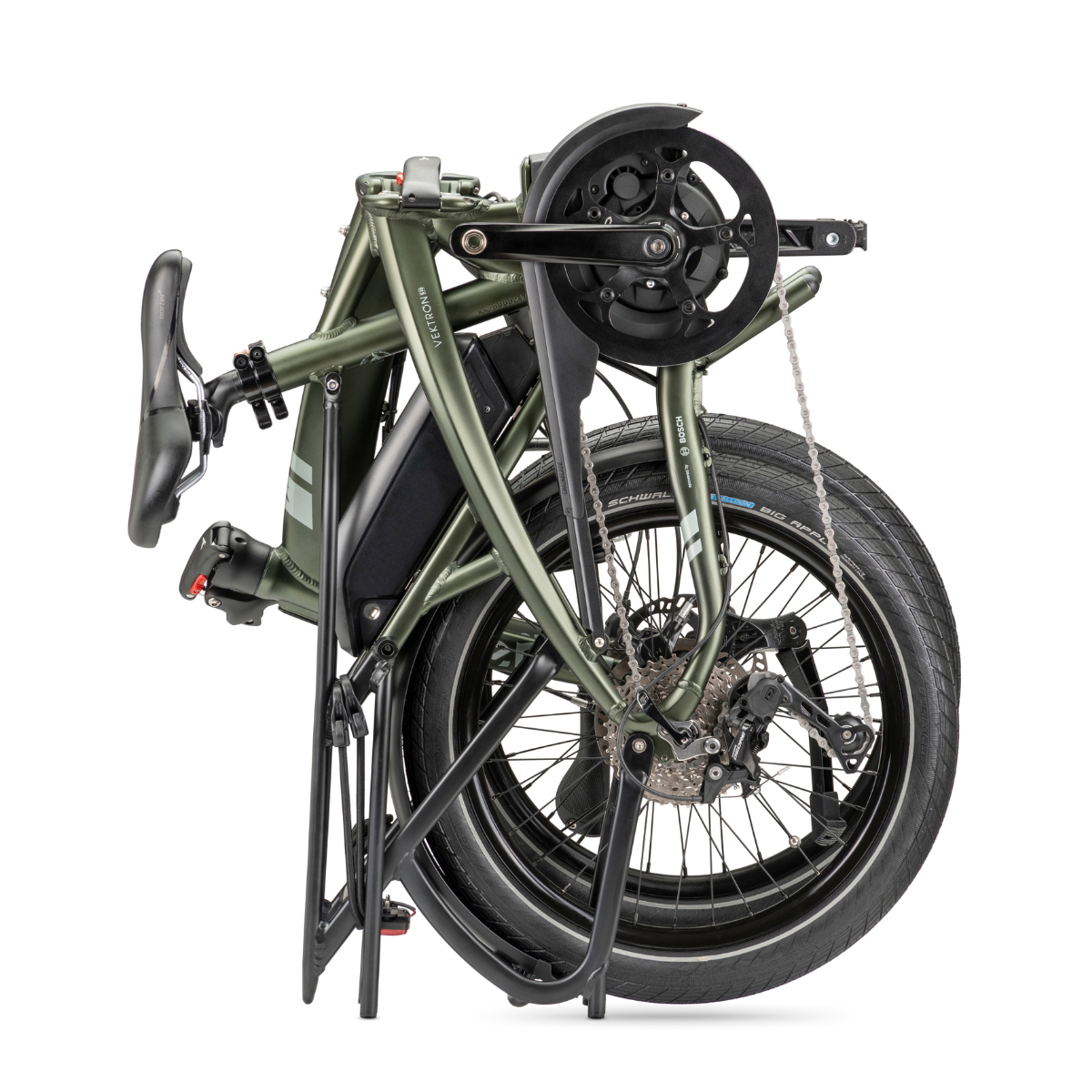

• Folding Size: 40 × 85.5 × 67.5 cm (15.7 × 33.7 × 26.6 in)
• Folding Time: 10 sec
• Frame Sizes: One size
• Distance: Seatpost to Handlebar: 62 - 69 cm (24.4 - 27.2 in)
• Distance: Saddle to Pedal: 67 - 110 cm (26.4 - 43.3 in)
• Suggested Rider Height: 147 - 195 cm (57.9 - 76.8 in)
• Max Gross Vehicle Weight: 125 kg (275.6 lb)
• Max Rider Weight: 105 kg (231.5 lb)
Frame & Forks
• Frame: Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
• Fork: Tern Tarsus, 6061-Al, hydroformed
Cockpit
• Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies
• Stem: Tern Andros, adjustable, forged construction, patented technology
• Headset: Flux Pro, angular contact bearings, Physis integrated
• Handlebar: Kinetix Comp, double-butted 6061-AL, Tern Andros adapted
• Grips/Bar Tape: Ergon
• Saddle: Tern Porter+, patented GripPad design, PrimeGel padding
• Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
• Seatpost Clamp: Tern Collar, 6061-AL, 2pc
Transmission
• Shifter(s): Shimano Deore, 1 x 10 spd
• Rear Derailleur: Shimano Deore Shadow+
• Crankset: Vektron custom, forged 6061-AL crankarm
• Cassette/Freewheel: Shimano 11-36T, 10 spd
• Bottom Bracket: Motor integrated
• Chain: 10 spd, DHT for eBike, GST corrosion resistant coating
• Pedals: MKS EZY
• Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
• Motor: Bosch Performance, 300% Assist, 65 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
• Battery: Bosch PowerPack 400 Wh
• Display: Bosch Purion, 4 mode selectable, walk assist
• Range: 400 Wh: 53 - 106 km (34 - 68 mi)
• Charger: 220V, 4A (EU); 100-240V, 4A (US)
Wheelset
• Front Hub: Novatec, sealed cartridge bearing, disc
• Rear Hub: Novatec, sealed cartridge bearing, disc
• Spokes & Nipples: Stainless steel, double-butted
• Rims: Kinetix Comp, for disc
• Tyres: Schwalbe Big Apple, Performance Line, 55-406, puncture protection, Reflex
Brakes
• Front Brake: Magura MT4, hydraulic disc
• Rear Brake: Magura MT4, hydraulic disc
• Brake Levers: Magura, hydraulic disc
• Brake Cable & Housing: Magura, hydraulic disc
Bells & Whistles
• Bell: Aluminum
• Chainguard: SKS Chainblade
• Kickstand: URSUS, rear mount
• Clip System: Magnetix 3.0
• Luggage Socket: Yes
• Front Light: Tern Valo Direct, 190 lumens
• Rear Light: Herrmans H-Trace, for eBike
• Fenders: SKS, stainless hardware
• Rack(s): Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
Best-in-class electric bike
that folds in 10 seconds!
The Foldable E-Bike

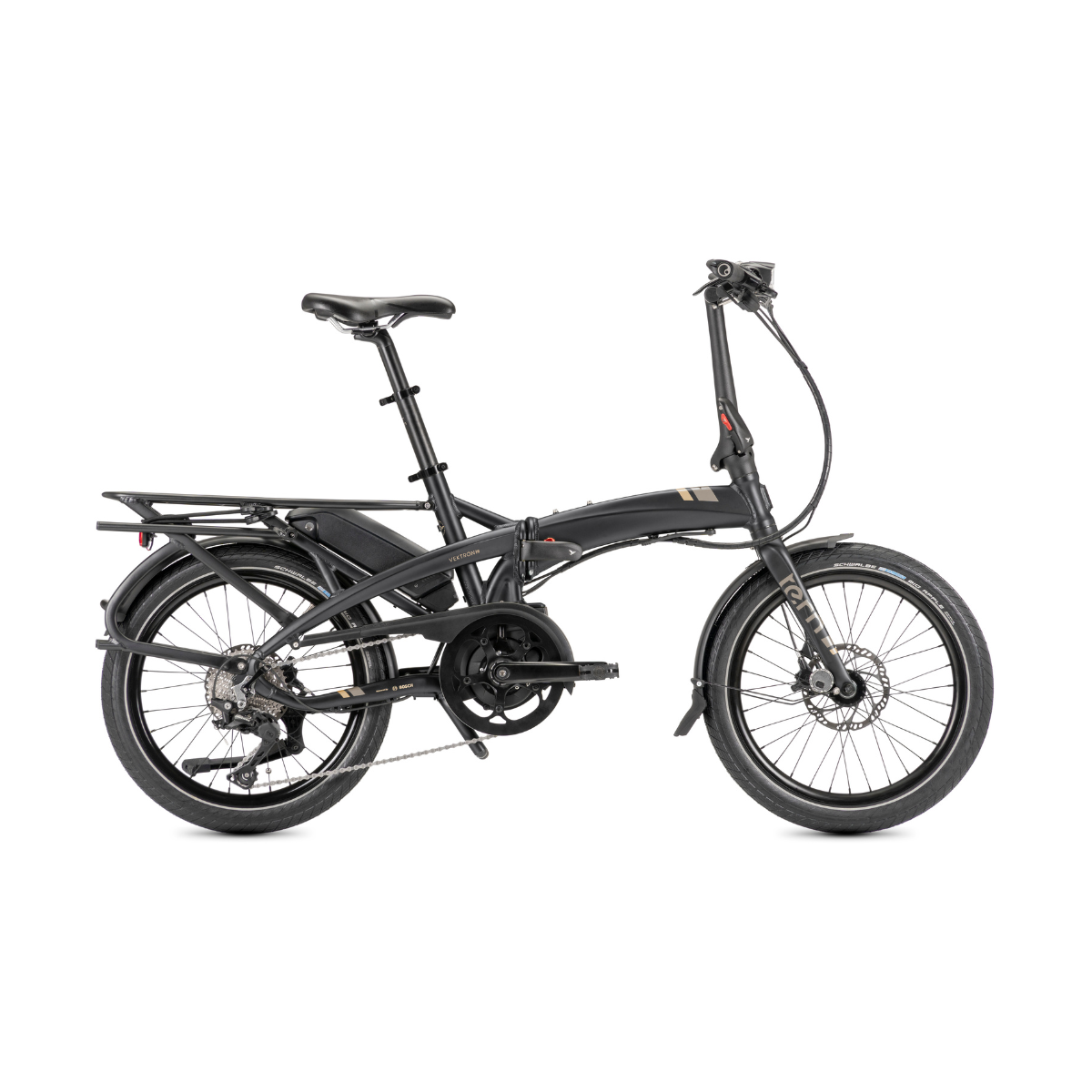

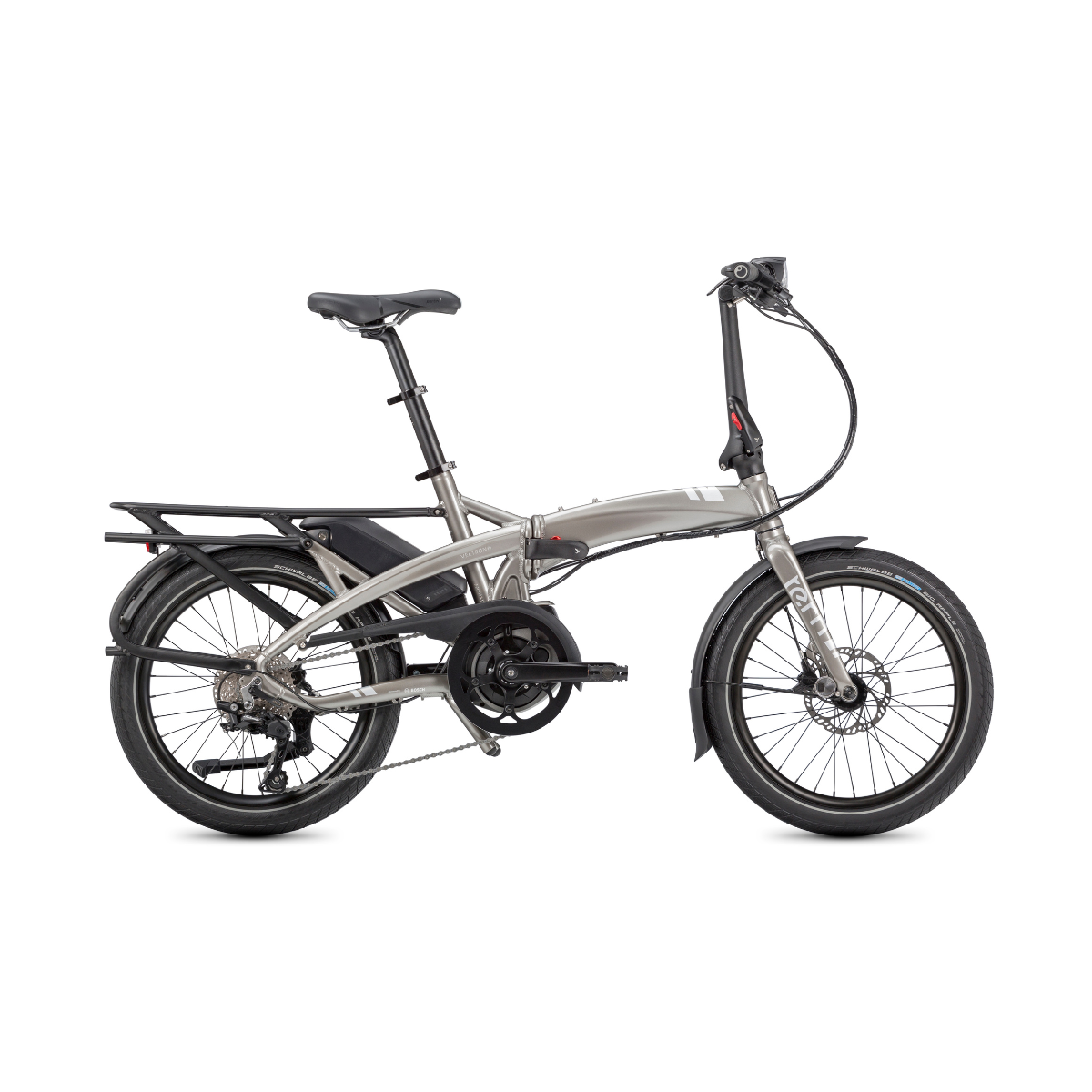

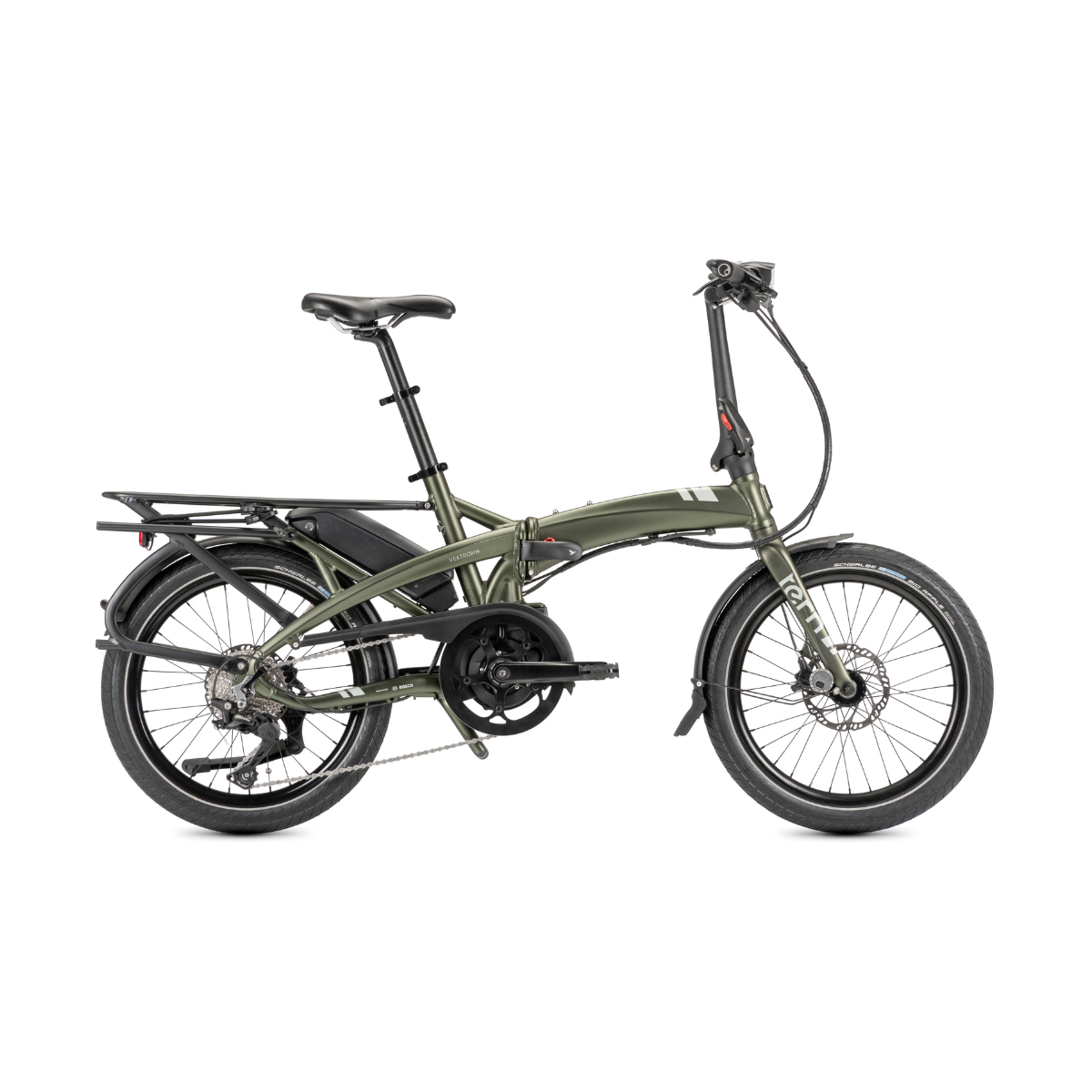

The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the boot of your car on your next trip, so you can explore further.
1 x 10 Shimano Deore
Rear Rack Capacity Of 27kg
Tern Folding Technology
⓵ OCL+ Frame Joint
An upgraded version of our iconic OCL frame hinge, the OCL+ is engineered to exceed ISO 4210 and EN 15194 standards. Borrowing from the heavy-duty Tern Cargo Node, it features a single-shaft design, reinforced welding techniques, and solid gussets—making it exceptionally stiff and durable, even at high speeds.
⓶ Atlas V Rack

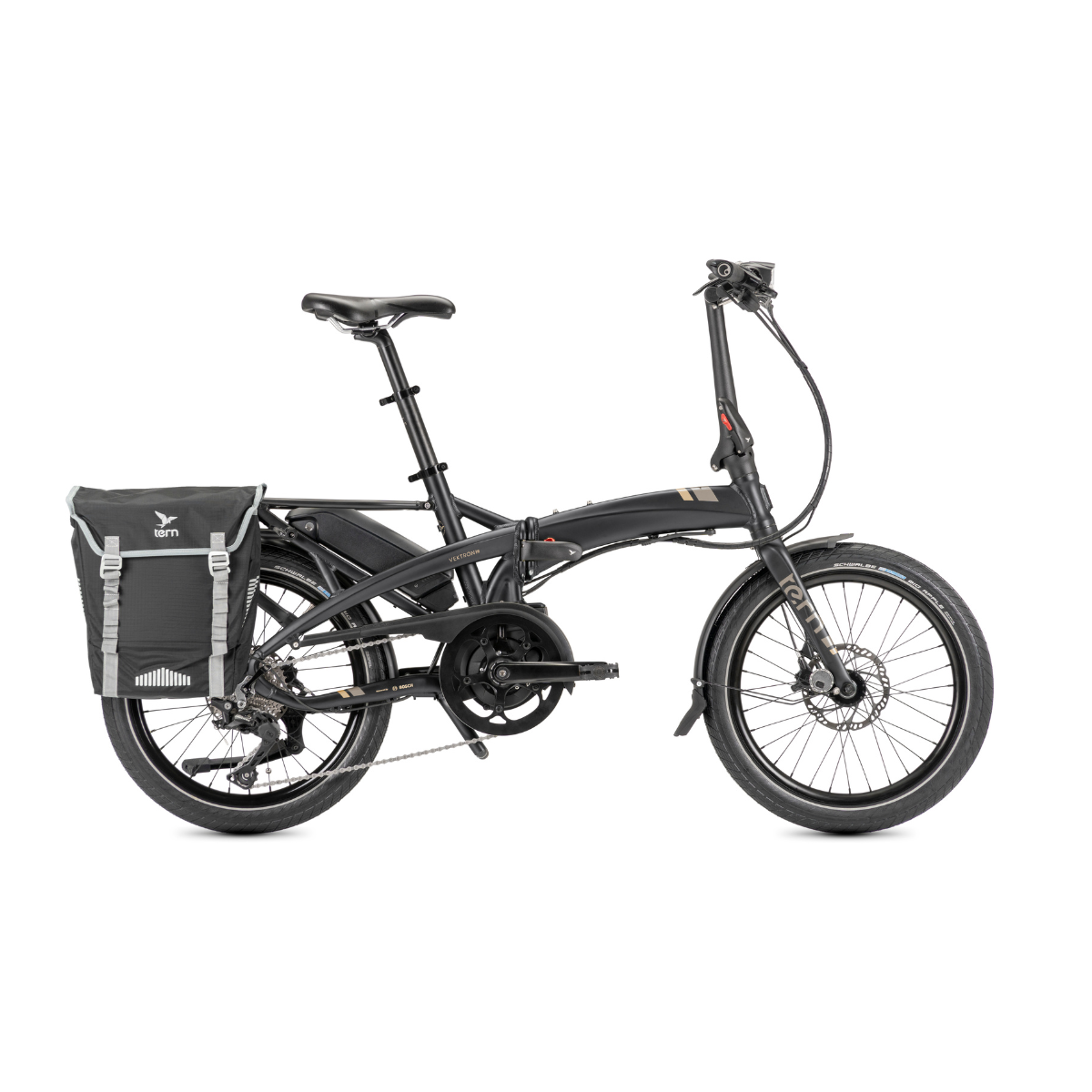

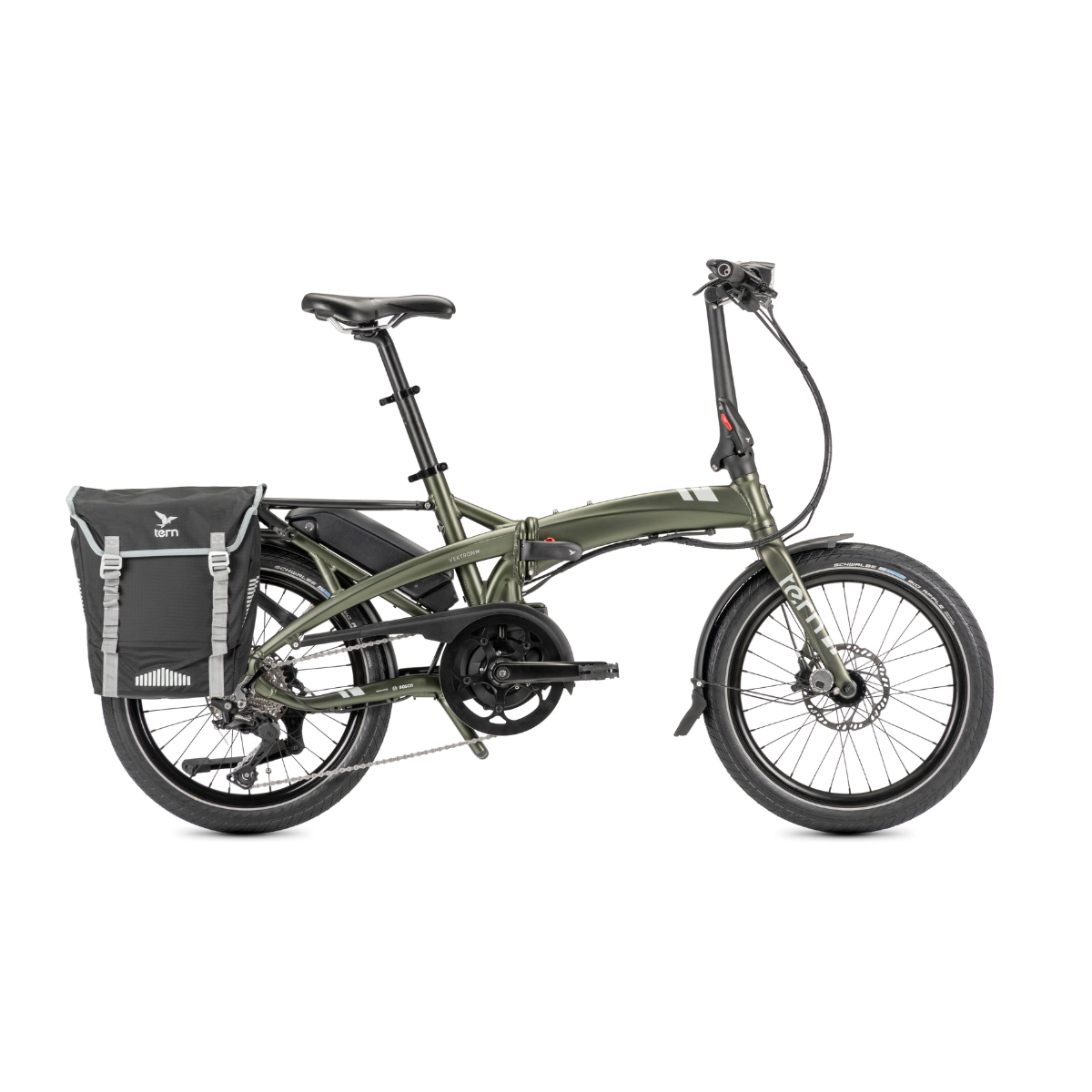

Inspired by the rugged Tern GSD, the new Atlas V Rack is stronger and larger than ever, with a 27 kg (59 lb) load capacity. It minimises flex for safer handling under load. It's compatible with child seats like the Thule Yepp Maxi or Dash® RM (no adapters needed) and works with various panniers—including the custom-fit Bucketload Pannier.
⓷ Bosch Performance Drive Unit
Electric bikes make getting from A to B effortless—but with the Bosch Performance Drive Unit, you’ll want to ride the whole alphabet. It strikes the perfect balance between torque and range, easing the load of hauling gear or passengers. With up to 100 km of range on a 400 Wh battery, it's a leader in e-bike innovation.
