Tern
Vektron Q9
Please Call Before Ordering
Pickup available at 815 Christchurch Road
Usually ready in 5+ days
Shipping & Returns
- We offer shipping up to 100 miles.
- Please contact the store if you require assistance with delivery.
Pickup available at 815 Christchurch Road
Usually ready in 5+ days
Shipping & Returns
- We offer shipping up to 100 miles.
- Please contact the store if you require assistance with delivery.
Product Specification
Take a look at the specifications of the Vektron Q9:
General Info
• Speeds: 1 x 9
• Weight: 21.9 kg (48.3 lb)
• Gear Inches: 33" - 97" (2.65 - 7.72 m)

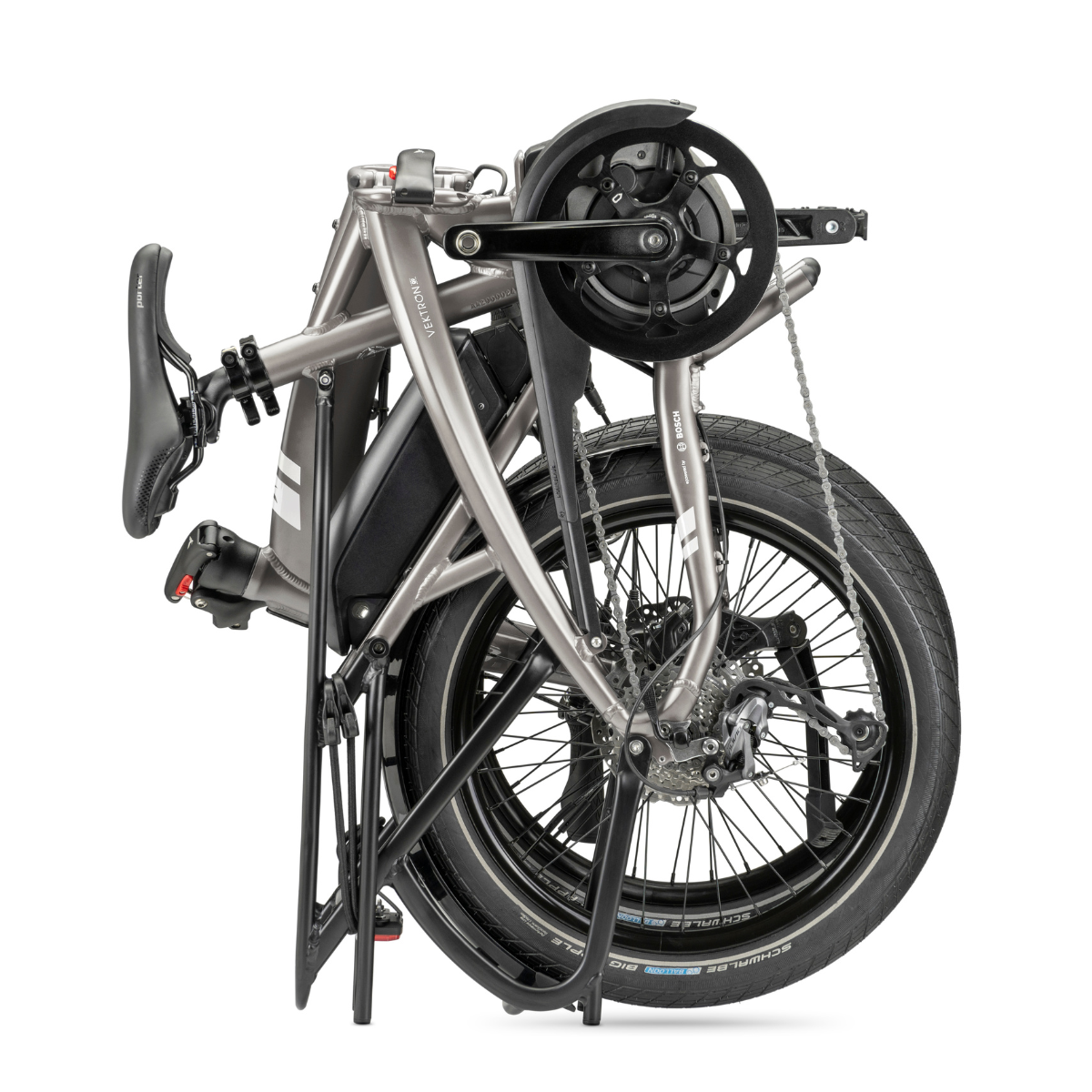

• Folding Size: 42 × 86 × 68.5 cm (16.5 × 33.9 × 27 in)

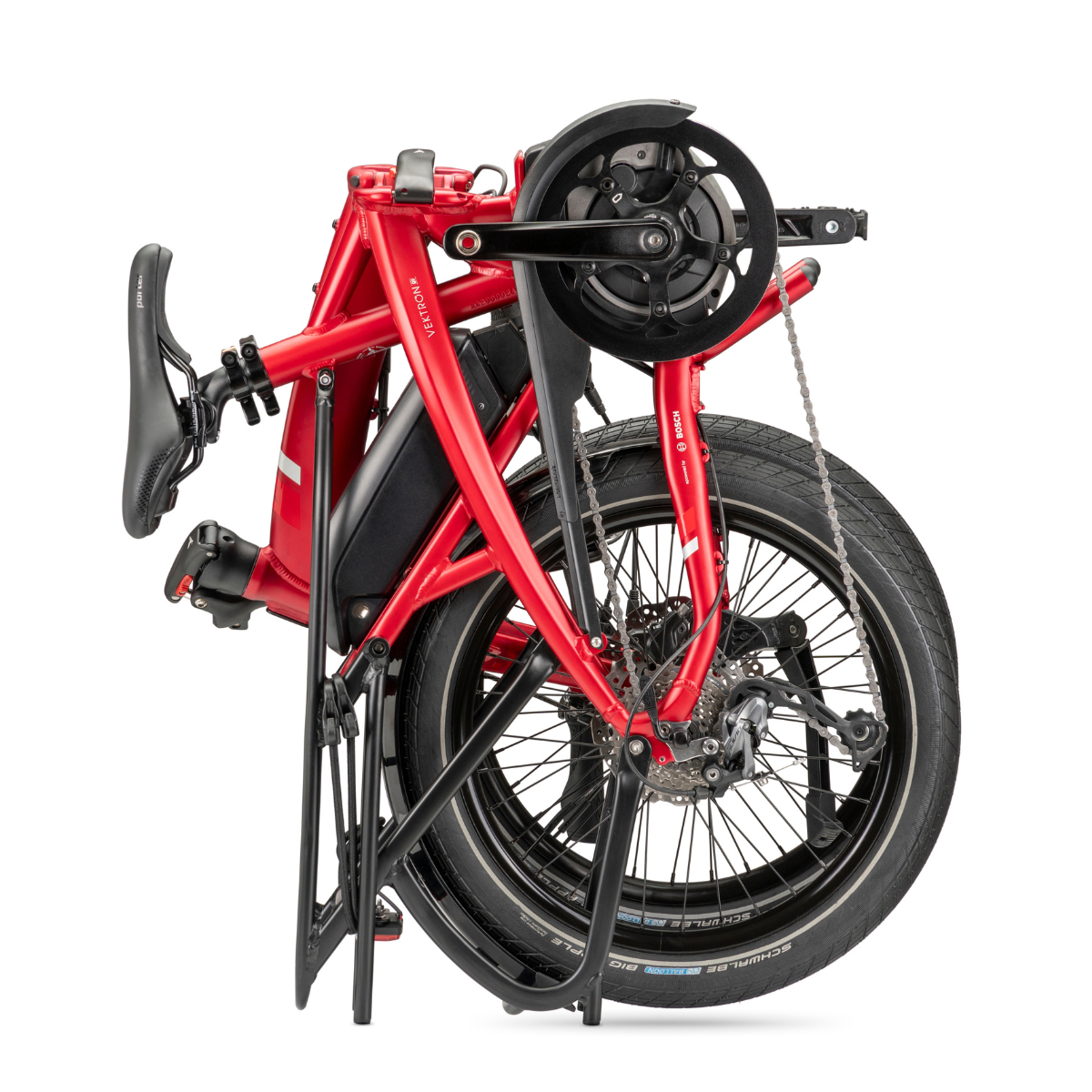

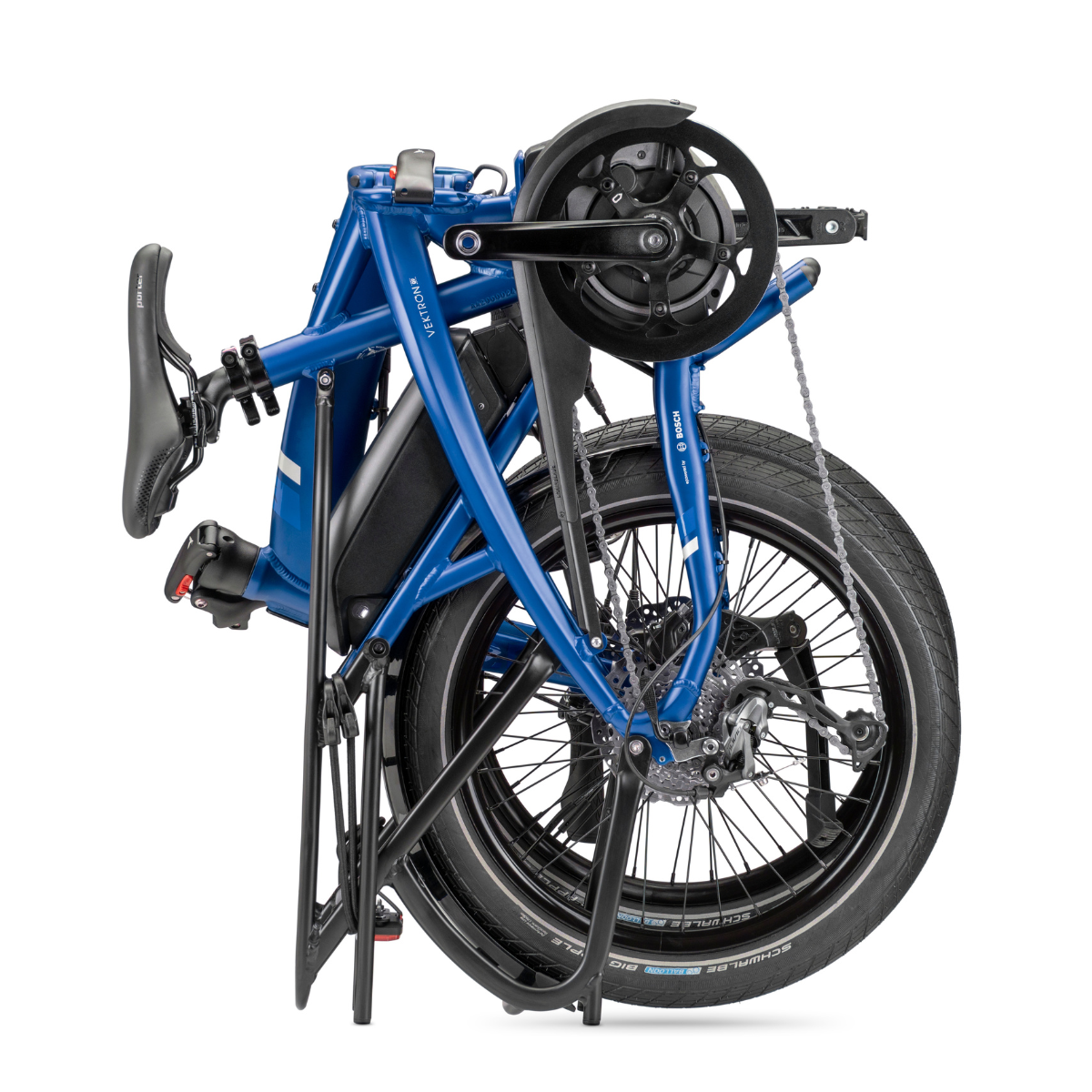

• Folding Time: 10 sec
• Frame Sizes: One size
• Distance: Seatpost to Handlebar: 62 - 69 cm (24.4 - 27.2 in)
• Distance: Saddle to Pedal: 67 - 110 cm (26.4 - 43.3 in)
• Suggested Rider Height: 147 - 195 cm (57.9 - 76.8 in)
• Max Gross Vehicle Weight: 125 kg (275.6 lb)
• Max Rider Weight: 105 kg (231.5 lb)
Frame & Forks
• Frame: Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
• Fork: Tern Tarsus, 6061-Al, hydroformed
Cockpit
• Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
• Stem: Tern Andros, adjustable, forged construction, patented technology
• Headset: Tern Flux, cartridge bearings, Physis integrated
• Handlebar: Flat bar, 6061-AL, Tern Andros adapted
• Grips/Bar Tape: Velo ergonomic, lock-on
• Saddle: Tern Porter, patented GripPad design
• Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
• Seatpost Clamp: Tern Collar, 6061-AL, 2pc
Transmission
• Shifter(s): Shimano Alivio, 1 x 9 spd, trigger
• Rear Derailleur: Shimano Alivio Shadow
• Crankset: Vektron custom, forged 6061-AL crankarm
• Cassette/Freewheel: Shimano 11-32T, 9 spd
• Bottom Bracket: Motor integrated
• Chain: 9 spd, DHT for eBike, GST corrosion resistant coating
• Pedals: MKS EZY
• Shifter Cable & Housing: Jagwire LEX-SL, slick treatment, alloy ferrules
E-System
• Motor: Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 25 kph (EU); max speed 20 mph (US)
• Battery: Bosch PowerPack 400 Wh
• Display: Bosch Purion, 4 mode selectable, walk assist
• Range: 400 Wh: 55 - 110 km (35 - 70 mi)
• Charger: 220V, 4A (EU); 100-240V, 4A (US)
Wheelset
• Front Hub: Shimano disc
• Rear Hub: Shimano disc
• Spokes & Nipples: Stainless steel
• Rims: Kinetix Comp, for disc
• Tyres: Schwalbe Big Apple, 55-406, puncture protection, Reflex
Brakes
• Front Brake: Shimano, hydraulic disc
• Rear Brake: Shimano, hydraulic disc
• Brake Levers: Shimano, hydraulic disc
• Brake Cable & Housing: Shimano, hydraulic disc
Bells & Whistles
• Bell: Aluminum
• Chainguard: SKS Chainblade
• Kickstand: URSUS, rear mount
• Clip System: Magnetix 3.0
• Luggage Socket: Yes
• Front Light: Tern Valo Direct, 190 lumens
• Rear Light: Herrmans H-Trace, for eBike
• Fenders: SplashGuard, stainless hardware
• Rack(s): Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)
Best-in-class electric bike
that folds in 10 seconds!
The Foldable E-Bike
The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the boot of your car on your next trip, so you can explore further.
1 x 9 Shimano Alivio
Rear Rack Capacity Of 27kg
Tern Folding Technology
⓵ Bosch Active Line Plus
With a little more torque for smoother acceleration, the Bosch Active Line Plus drive unit can take you up to 25 km per hour (20 mph in the U.S.) and operates dependably—day in and day out. The new generation of the Active Line Plus is also 20% lighter and 25% smaller than the previous one, maintaining its excellent performance and low vibration levels while delivering an even quieter ride with less pedal resistance.
⓶ Atlas V Rack
With structural cues from the heavy-duty Tern GSD, the new Atlas V Rack has been massively strengthened and increased in size, with a load capacity of 27 kg (59 lb). This reduces flex for more secure handling when the bike is loaded. Riding with your little one? Add a Thule Yepp Maxi or Dash® RM child seat—no adapters needed. The Atlas V Rack is also KLICKfix® compatible, and can hold panniers of different sizes—including the Bucketload Pannier, which was designed to fit every configuration of the Vektron.
⓷ Shimano Alivio Shadow Derailleur
For most cities, the resilient 9-speed Alivio Shadow derailleur is all you really need—with the added benefit of keeping everything tucked away for extra protection, which comes in handy when you need to transport your folded bike.
